DNA 570XHT

DNA 570XHT

Outboard Motor

100-150HP

620Kg

Pontoon - Hardtop

From $55,399 Hull Only

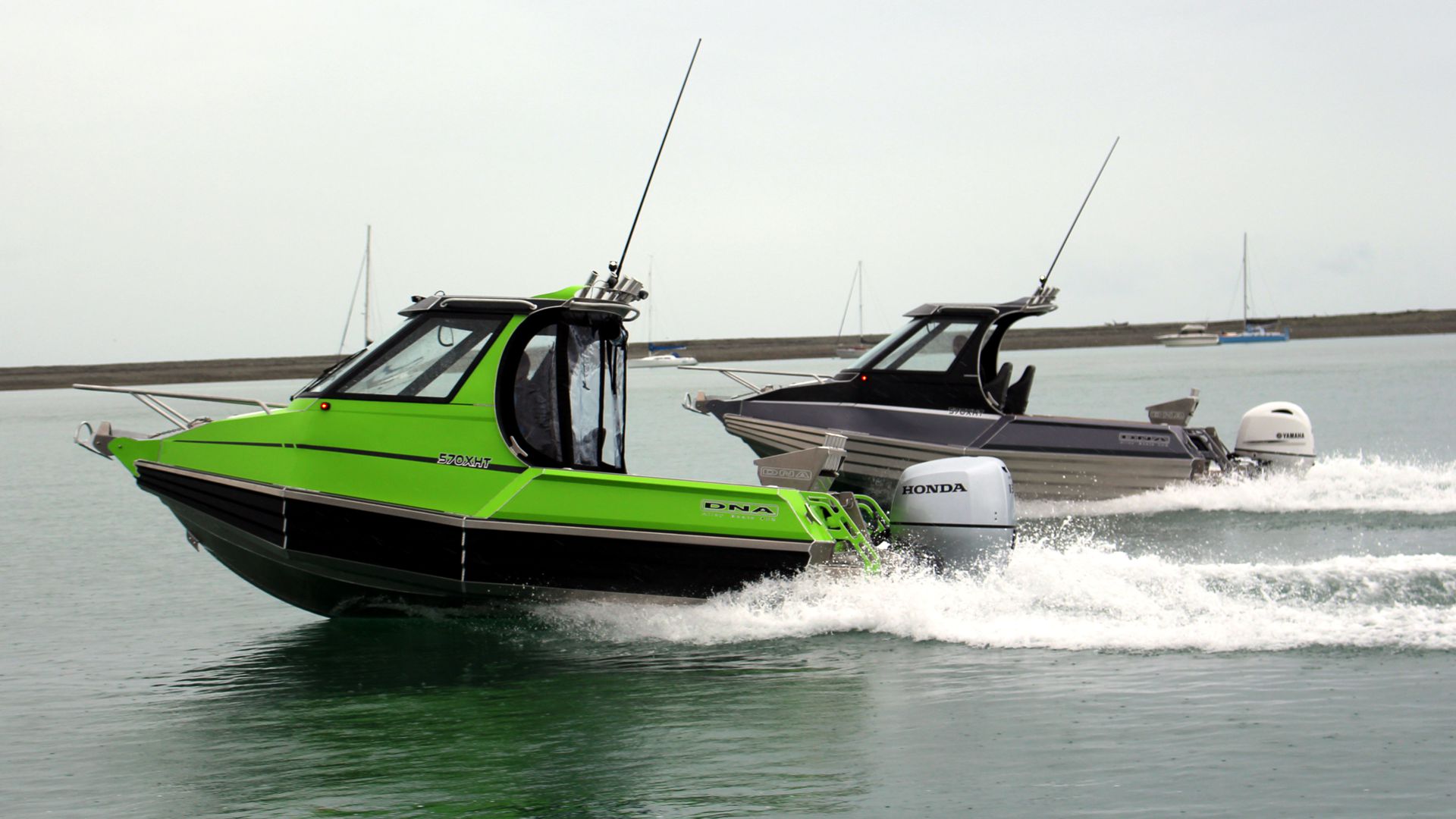

DNAs 5.7 meter, 570 XHT Hardtop is large enough to comfortably fish four adults whilst providing additional protection from the elements. Featuring a Curved Glass front Windscreen provides an optically correct and clear view. The 570 XHT Cantilever seat bases provide storage under for twin 115 litre Icey-Tek Style Cooler bins. Twin enclosed Transom lockers with sealed hatches, provide secure electrical and battery storage. Underfloor 135 litre fuel tanks are standard. DNAs signature sleek tapering pontoons and X-Series hull provide an unrivalled soft ride. The 570XCs high sides add additional storage to keep the deck clutter free maximising room to fish. This boat can be towed on a single axle trailer offering convenience and ease of maneuverability while still being easily launched and handled by one person. The front Cabin area can be set up with a Vee-Berth forward and infill squabs giving this XHT overnight capability. Offering a long list of options theses DNA XHT Hardtops can be set up for some serious fishing and adventure.

DNA 570XHT Specs

Length5.7M
Recommended HP100HP
Maximum HP135HP
Leg length25IN
External Beam2.27M
Internal Beam1.67M
Tube thickness 3MM
Hull thickness4MM
Dry hull weight620Kg
Tow weight1270Kg
Height on trailer 2.9M
Length on trailer 6.8M
Under floor fuel thank125L
Deadrise (At Transom)20

DNA 570XHT Features

“DNA” Graphics
Curved front windscreens
High sides & storage
4mm hull
Transducer bracket
Cuddy Shelves
Transom locker & 2x hatches
Bilge well and pump
X series hull - full flat floor
Drain bung
Battery master switch and wiring loom
Roof rod arch with 6 x rod holders
Bow handrails
Open underneath seat bases
Sliding/Swivel bolster seats
Sealed Treadplate floor
Rod Holders x 4
Anchor Bin
Outboard pod
Transom platforms
Non skid walk around bow
NFB steering
Nav Lights & Anchor light
  • “DNA” Graphics
  • Curved front windscreens
  • High sides & storage
  • 4mm hull
  • Transducer bracket
  • Cuddy Shelves
  • Transom locker & 2x hatches
  • Bilge well and pump
  • X series hull - full flat floor
  • Drain bung
  • Battery master switch and wiring loom
  • Roof rod arch with 6 x rod holders
  • Bow handrails
  • Open underneath seat bases
  • Sliding/Swivel bolster seats
  • Sealed Treadplate floor
  • Rod Holders x 4
  • Anchor Bin
  • Outboard pod
  • Transom platforms
  • Non skid walk around bow
  • NFB steering
  • Nav Lights & Anchor light

Note: Specifications and equipment may change at any time without notice. Photographs shown may include non-standard extras. Please consult your DNA Boats Dealer for specific model information.

DNA 570XHT Gallery

DNA 570XHT Additional Options

Tube matting on cockpit floor
Baitboard including 5 X rod holders
Minnkota bracket
Livebait tank & walk through transom
Walk through transom
Rear sliding bench seat
Rail blaza attatchments
Vee Berth & 3x Squabs
Vee Berth with squabs and infills (Sleepable)
Maxwell anchor winch and anchor
Dual batteries
U-Dek gunwale and transom top only
U-Dek All- floor, gunwales and transom platforms
Vinyl wrap topsides & pontoons
Vinyl wrap top sides
Washdown pump
Soft ride pedistals
Hydraulic steering
Window wipers (each)
Dive ladder
Lighting
Keel wearstrip
Front access hatch
Full cabin lining
  • Tube matting on cockpit floor
  • Baitboard including 5 X rod holders
  • Minnkota bracket
  • Livebait tank & walk through transom
  • Walk through transom
  • Rear sliding bench seat
  • Rail blaza attatchments
  • Vee Berth & 3x Squabs
  • Vee Berth with squabs and infills (Sleepable)
  • Maxwell anchor winch and anchor
  • Dual batteries
  • U-Dek gunwale and transom top only
  • U-Dek All- floor, gunwales and transom platforms
  • Vinyl wrap topsides & pontoons
  • Vinyl wrap top sides
  • Washdown pump
  • Soft ride pedistals
  • Hydraulic steering
  • Window wipers (each)
  • Dive ladder
  • Lighting
  • Keel wearstrip
  • Front access hatch
  • Full cabin lining
