DNA 901 Custom
DNA 901 Custom
Inboard Diesel
300 - 400HP
3500-4500KG
Custom Designed and Built Heavy Duty Aluminium Plate Hull

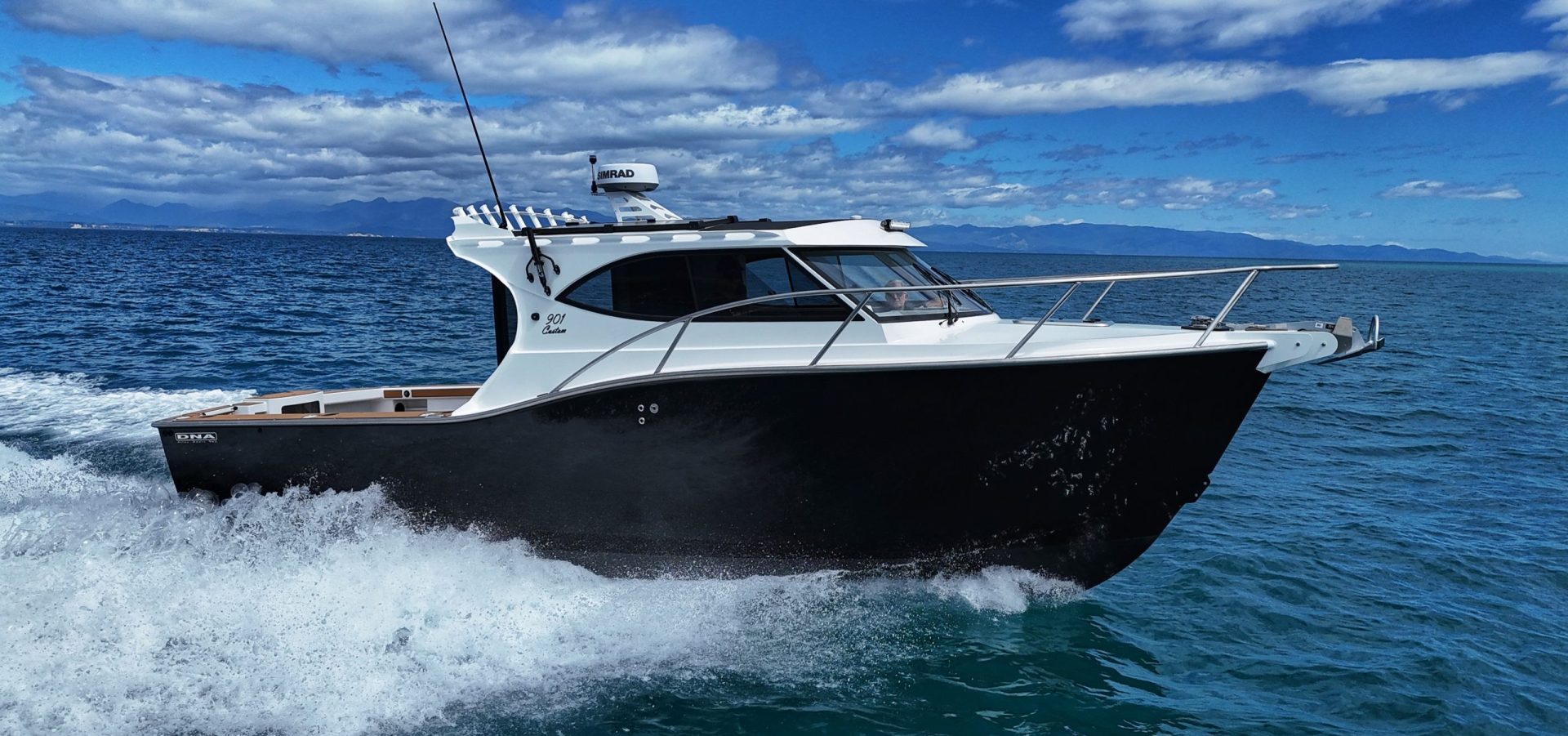

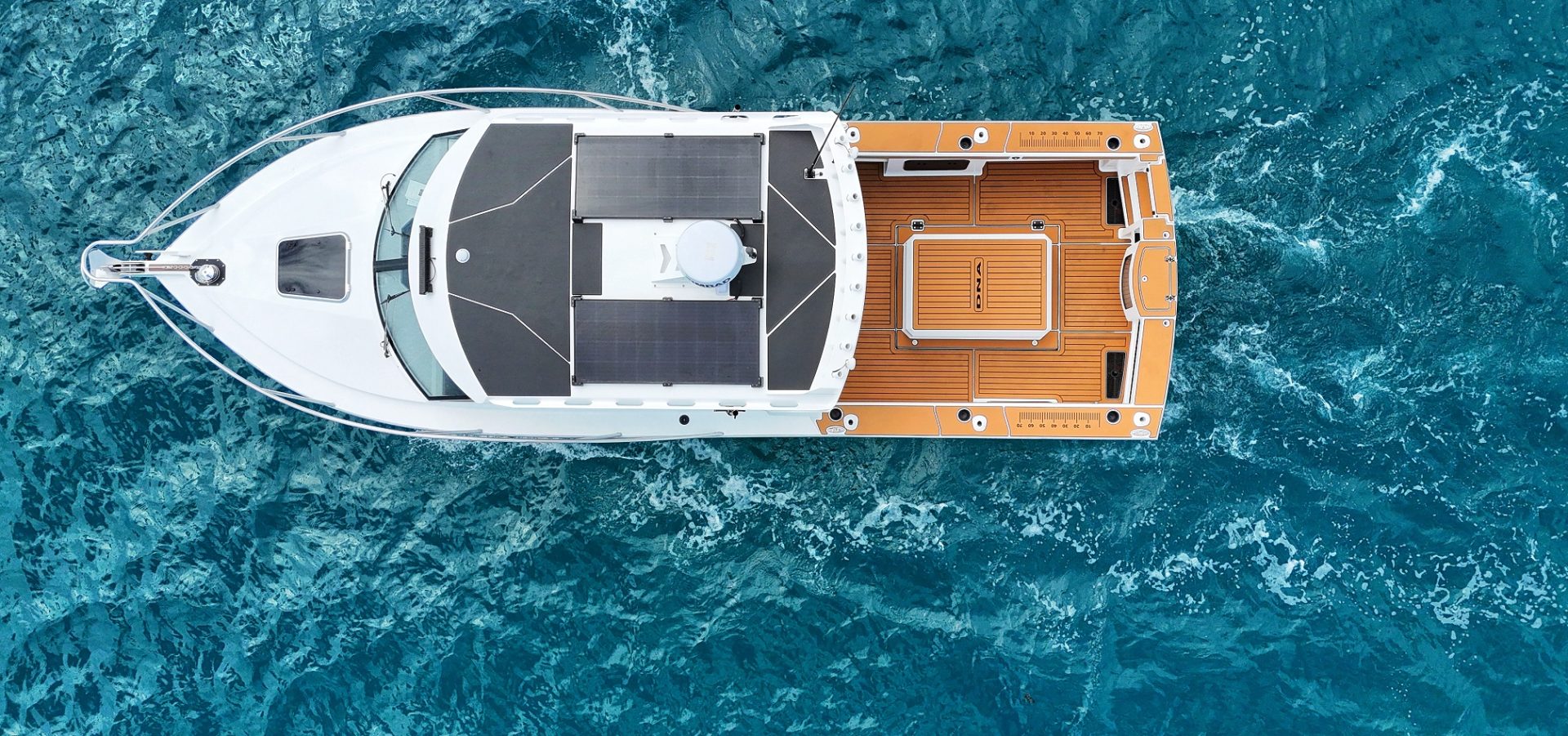

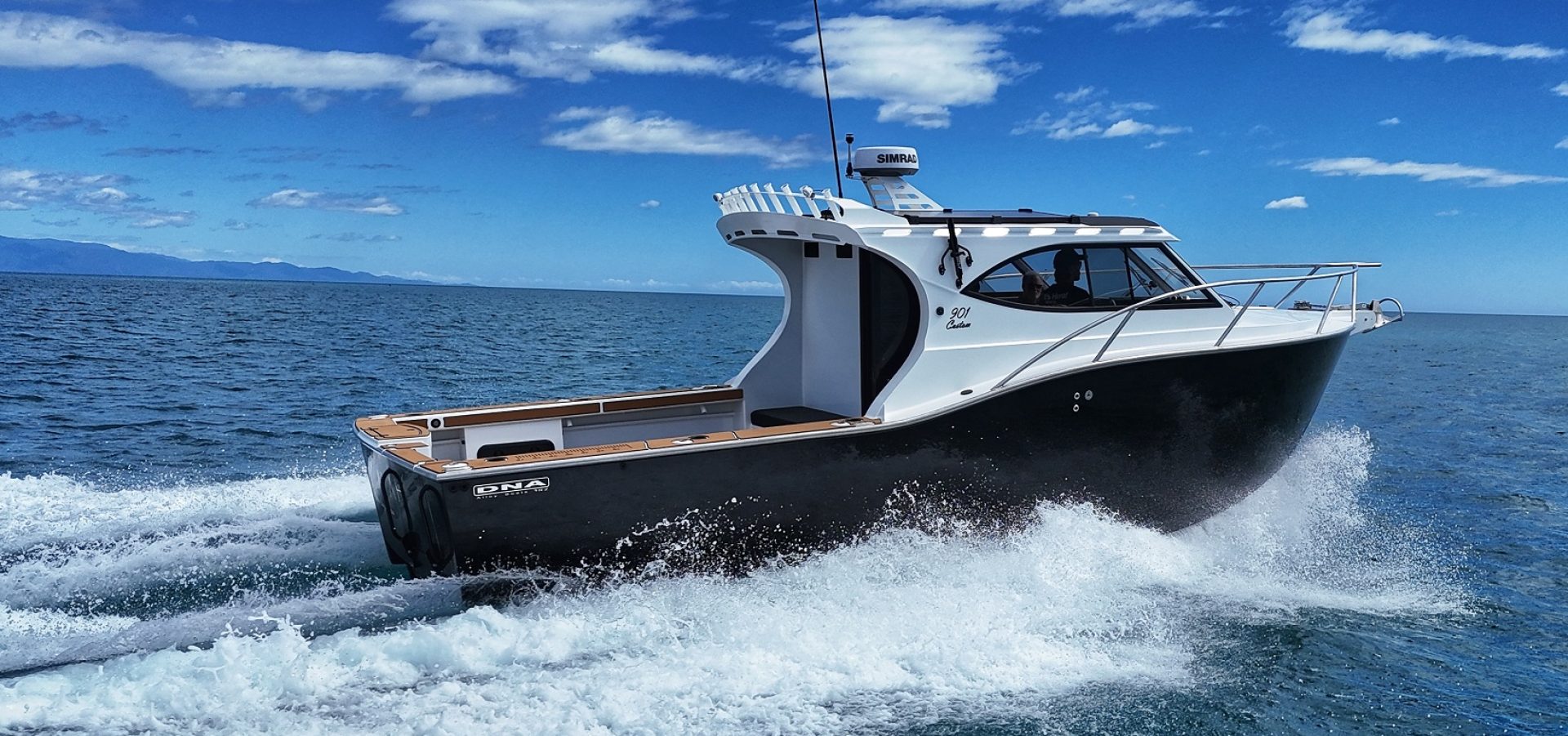

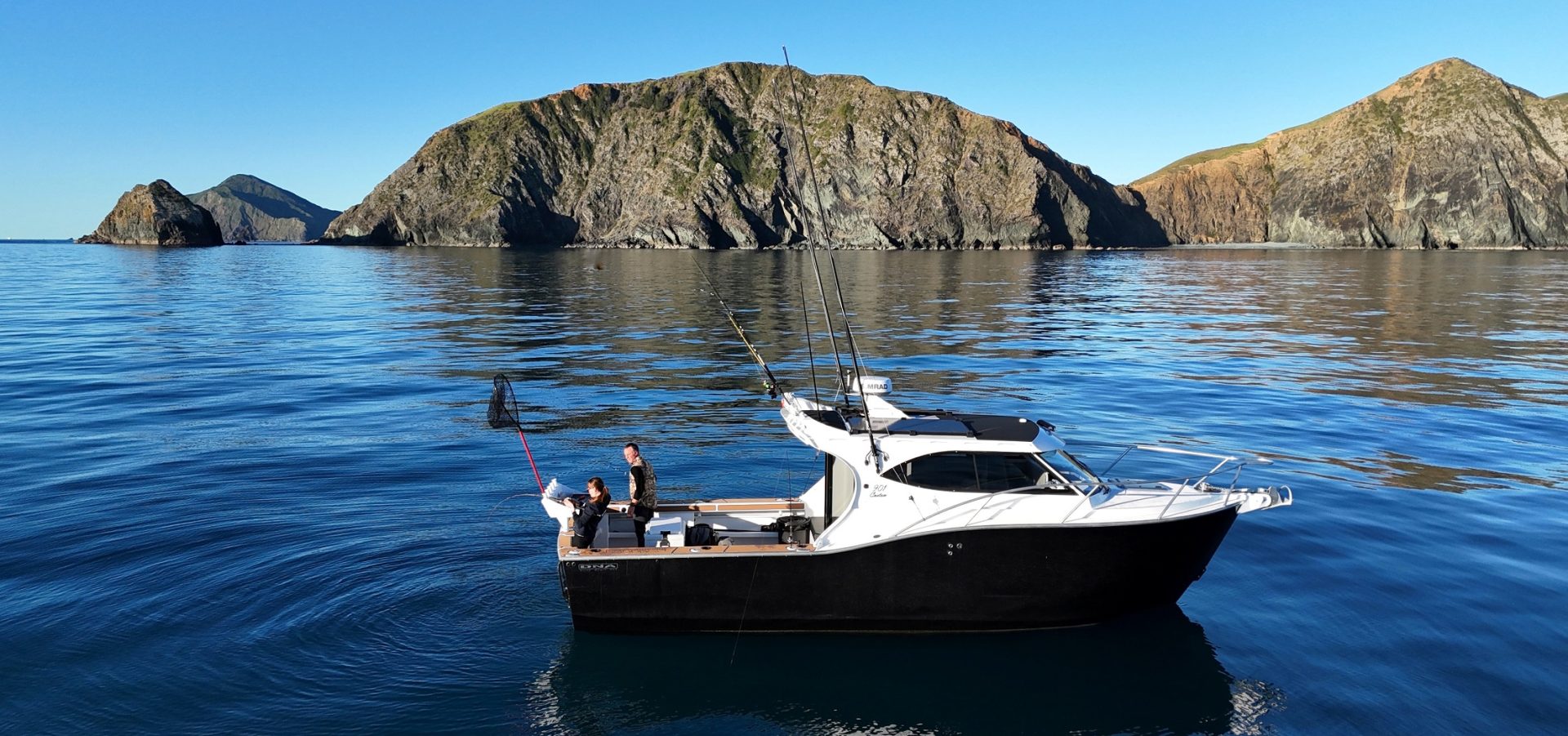

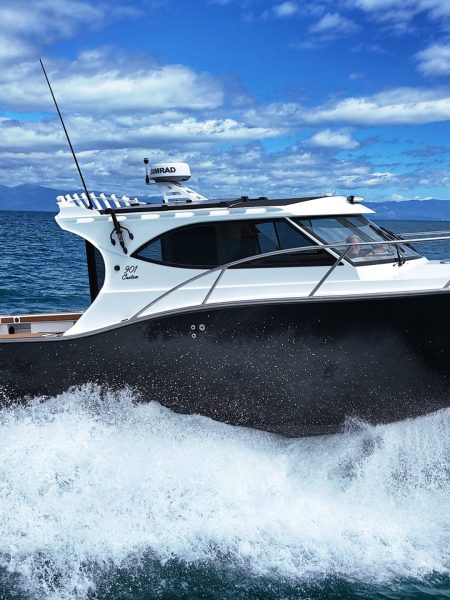

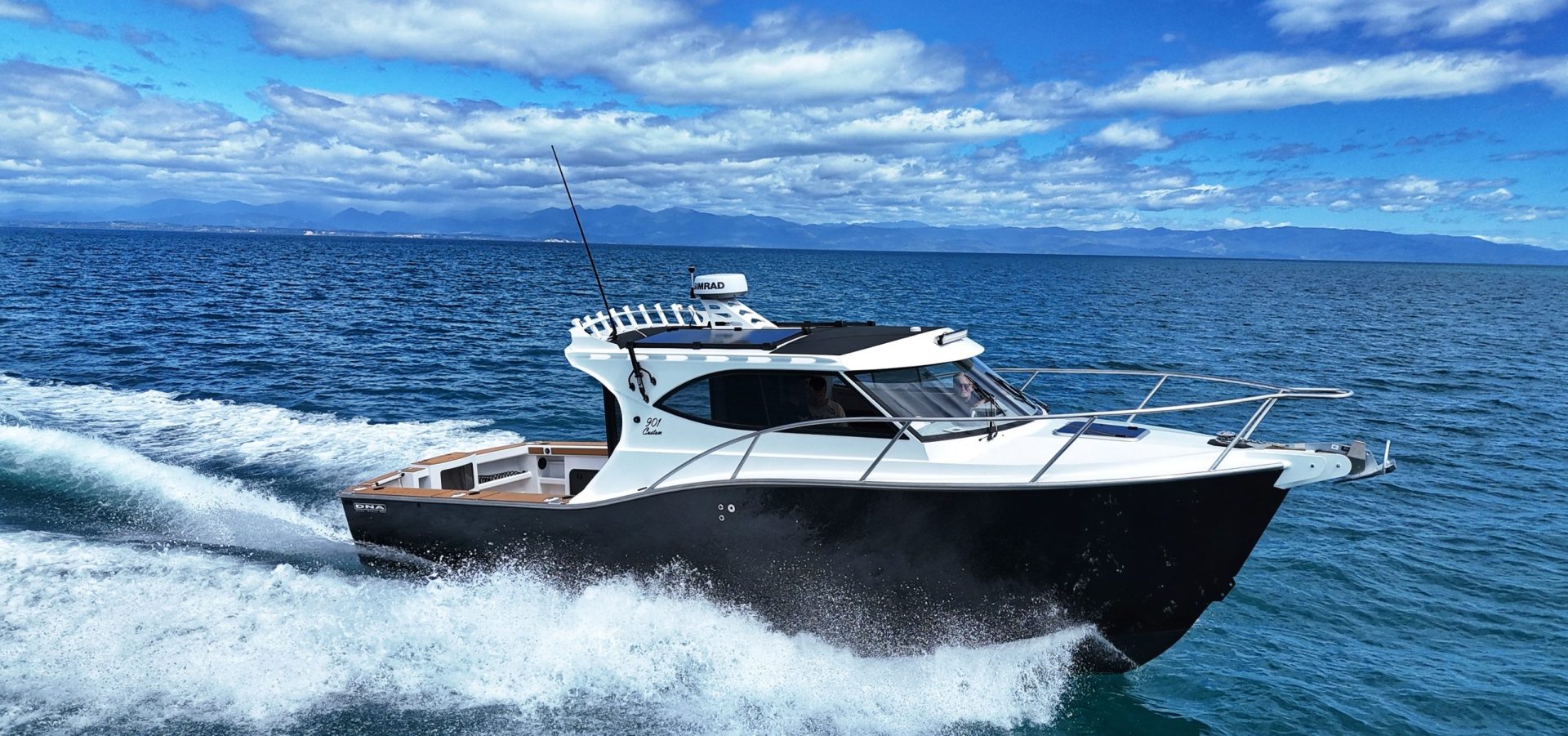

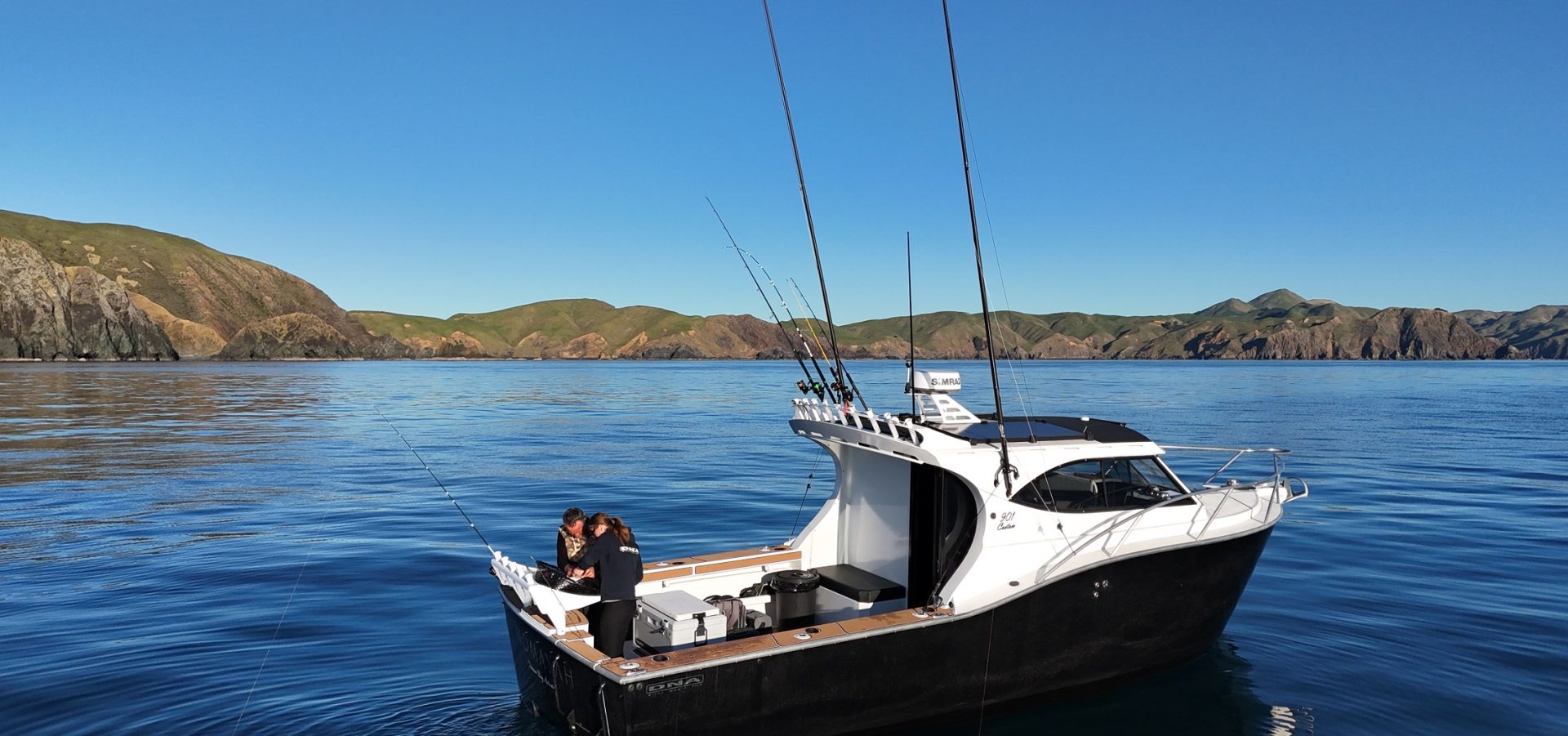

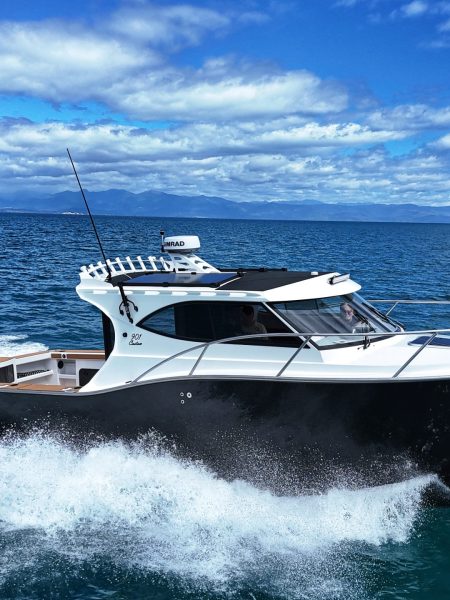

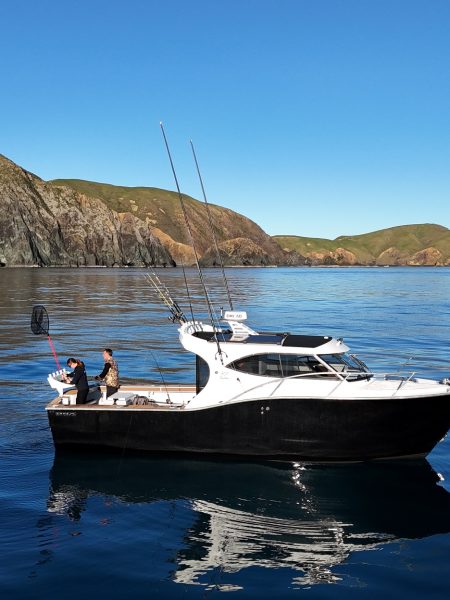

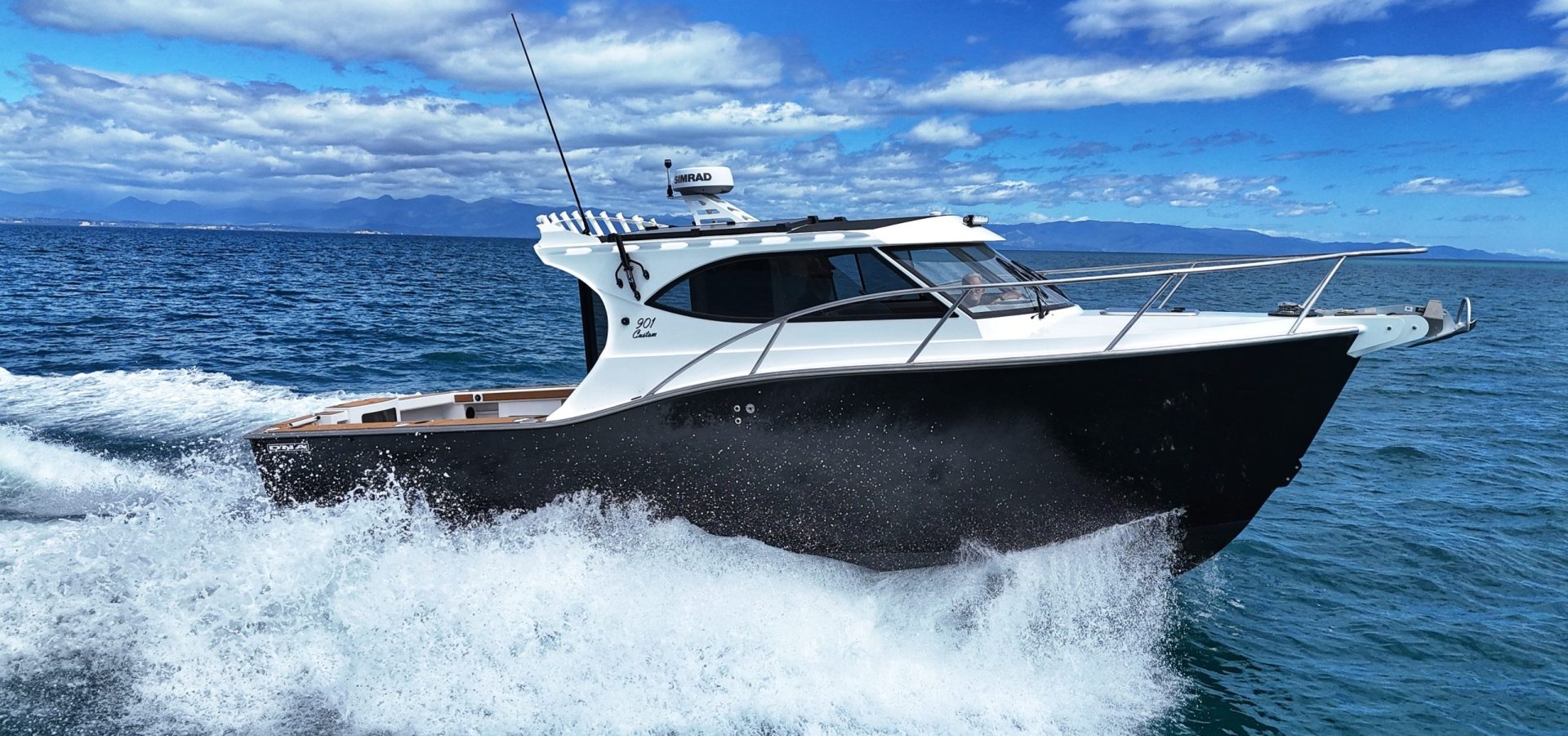

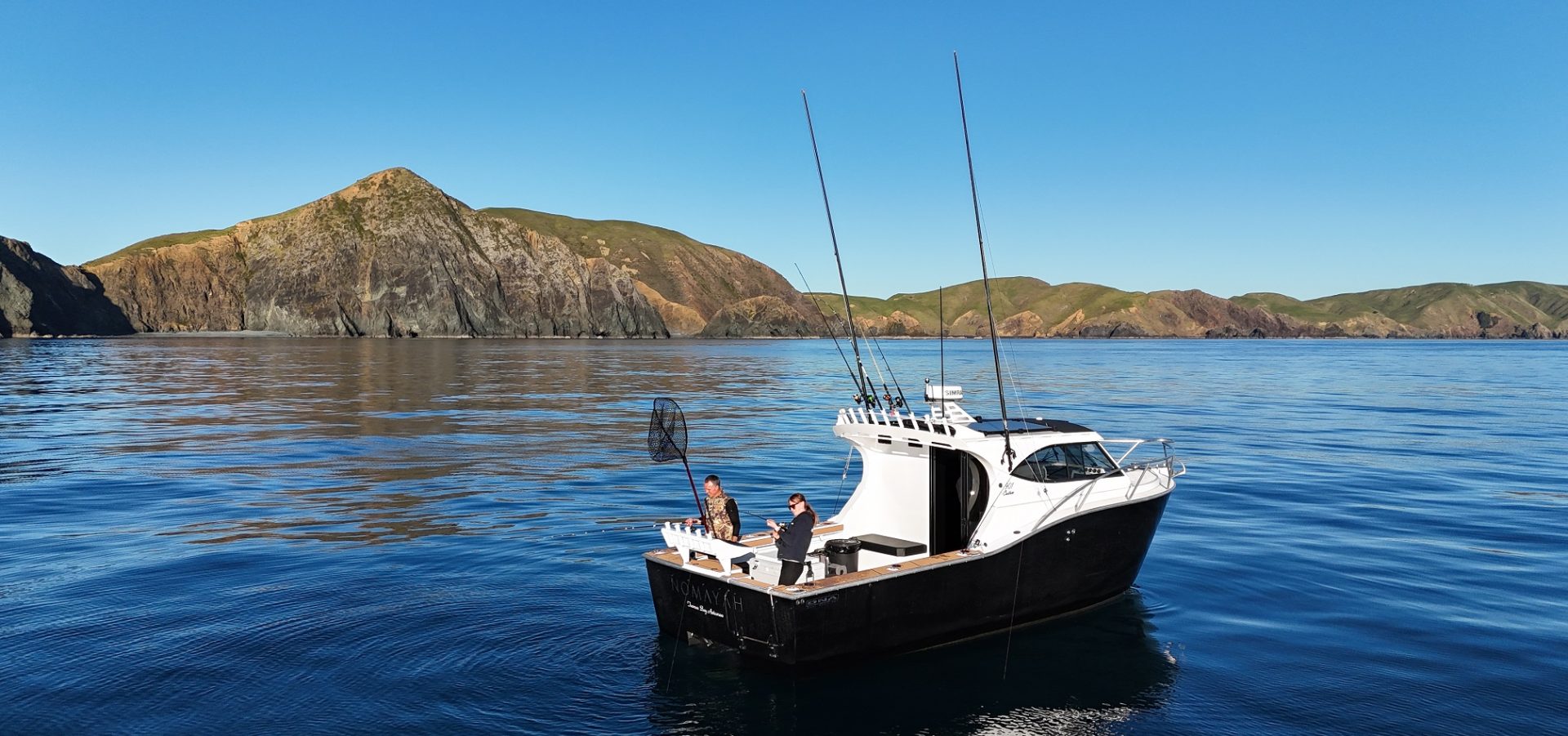

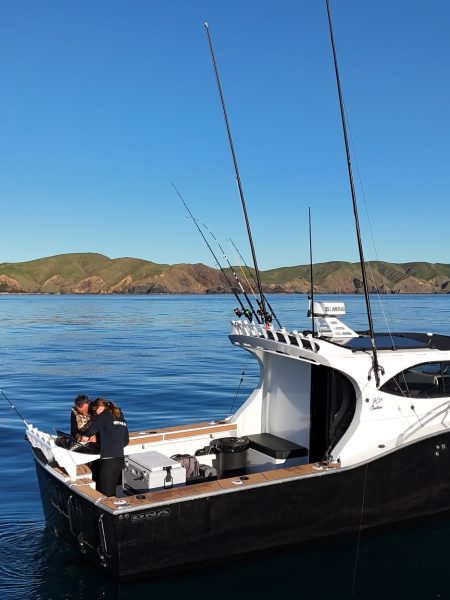

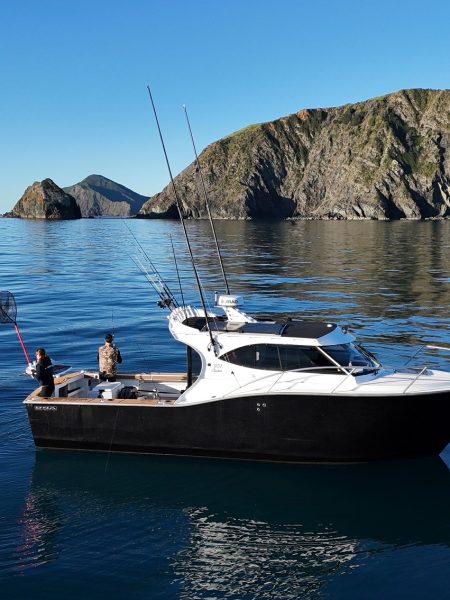

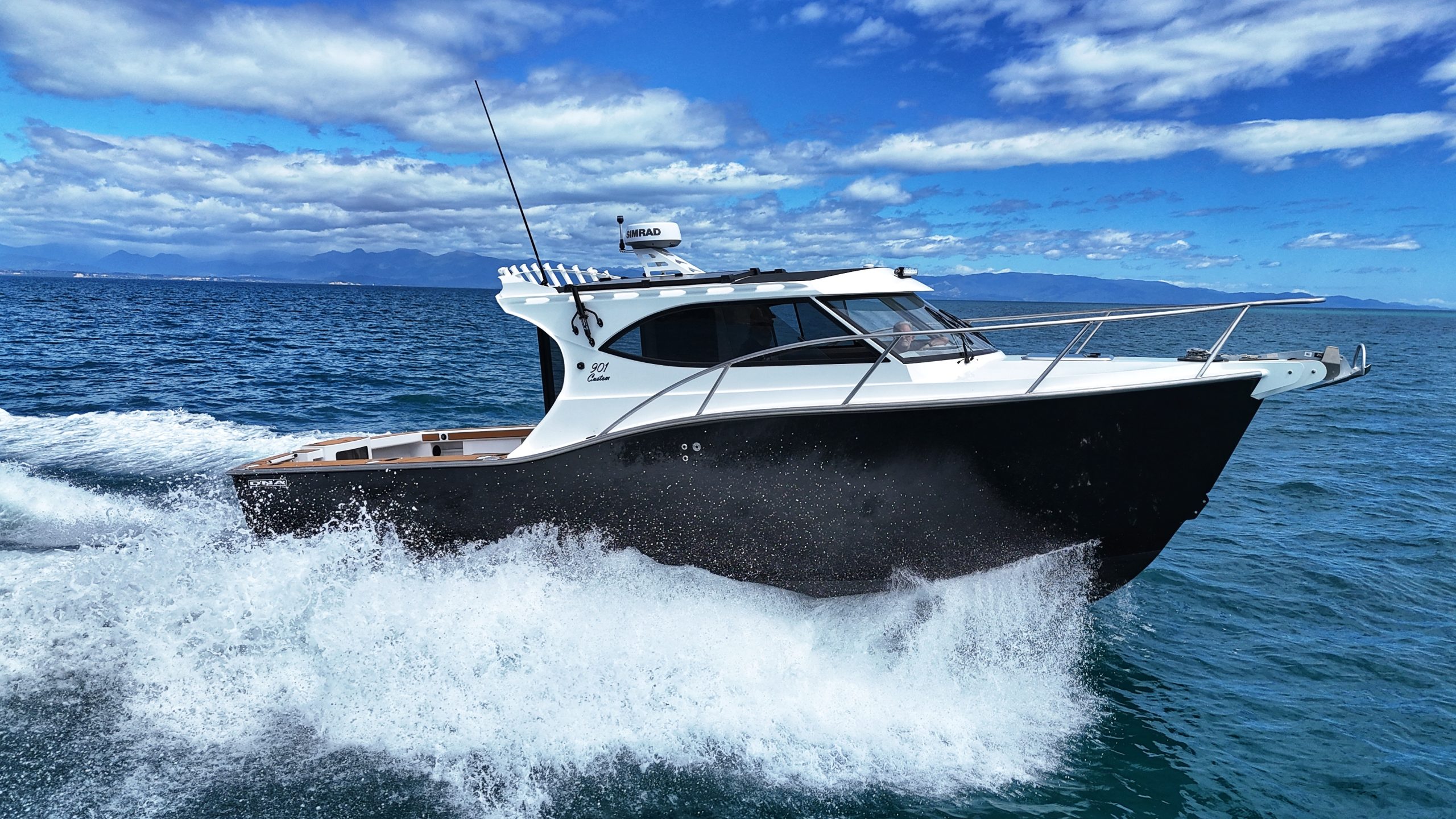

“NOMAYA”, designed and built by the DNA Boats Team, is a robust and comfortable vessel built for extended cruising along New Zealand’s Top of the South Coastline, Marlborough Sounds, and the rugged West Coast. Commissioned by a Nelson-based client, the boat prioritizes comfort, range, and functionality. Its heavy construction ensures a smooth ride, while the curved front glass windscreen provides excellent visibility. The boat features four berths, cooking facilities, a fridge, and a toilet with a shower (hot and cold water system). With generous deck space, 360-degree walk-around access, and ample storage, “NOMAYA” is well-equipped for overnight stays and long-distance exploration
DNA 901 Custom Specs
| L.O.A | 9.24M |
| Beam | 2.87M |
| Height Inc Radar | 3.54M |
| Draft (Stern Leg Down) | 0.9M |
| Fuel Capcity | 650 Litres |
| Water Capacity | 100 Litres |
| Dry Hull Weight | 3950KG |
| Berths | x 4 |
| Hull, Chine & Transom | 8MM 5083 |
| Hull Side Sheets & Transom Upper | 5MM 5083 |
| Decks | 4MM 5083 |
| Cabin Structure | 4MM 5083 |
DNA 901 Custom Features
4 x Forward Berths
Walk around engine box
Live bait Tank
Transom Gate/Ladder
Bait Station
Deck Wash
Electric Reel Sockets
Cockpit Seating with Storage under neath

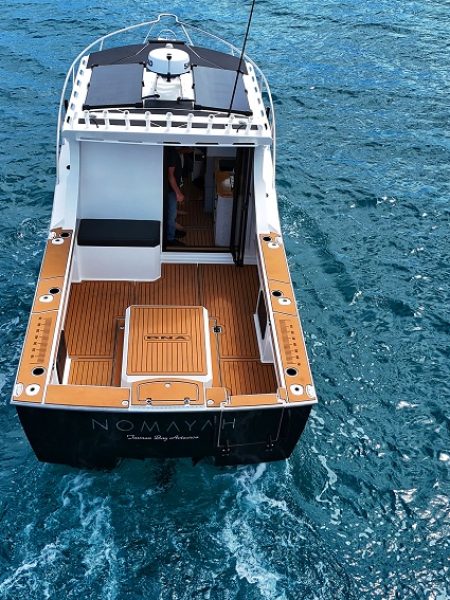

U-Dek Flooring
Faired and Painted (Epoxy)
Bow Rails
Welded in Rod Holders
Drink/Sinker Holders
Opening Front Hatch
Full Height Head with Shower
Corner Lounger Seating With Table
Diesel Cabin Heater
Thru Hull Transducer 3KW
Simrad Auto Pilot
Simrad Radar
16'' Simrad MFD
Simrad VHF
Simrad S5100 Sounder Module
Mercury Diesel V8 370HP
Stereo with Inddor and Outdoor Speakers
Comprehensive lighting package
Knee Operated Handwash x 2
USB Ports
Wallas Diesel Cooktop
Sink with Mixer
100L Fresh Water Tank C/W Accumulator
50L How Water Cylinder (Heated via Main Engine)

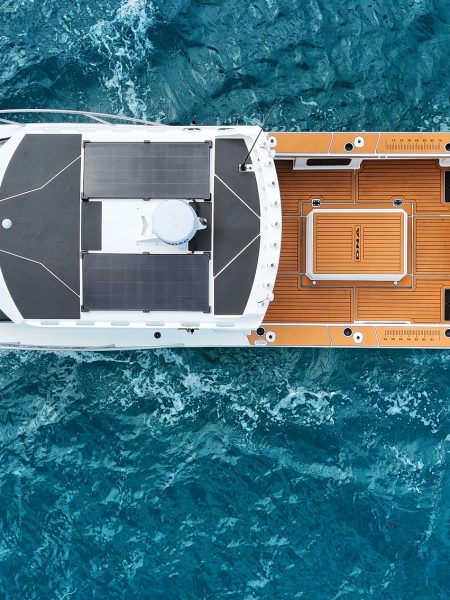

Solar Panels
Drawers
85L Fridge
DNA Swivel Bolster Skipper Seat
Bow Thruster
Maxwell RC8 Anchor Winch - 10KG Anchor 100m Rope and Chain Package
House And start Batterie's
Windscreen Wipers With Washer
Nav and Anchor Lights
Lined Cabin
Fold Up Stainless Steel Cleats x 4
Welded Bow Cleat
Mooring Capable Fairlead
Underwater Lights
Zipwake Trim Tabs
Roof Mounted Rod Holders
Bilge Pumps x 3 With Float Switches with 24HR Option
Sliding Side Windows

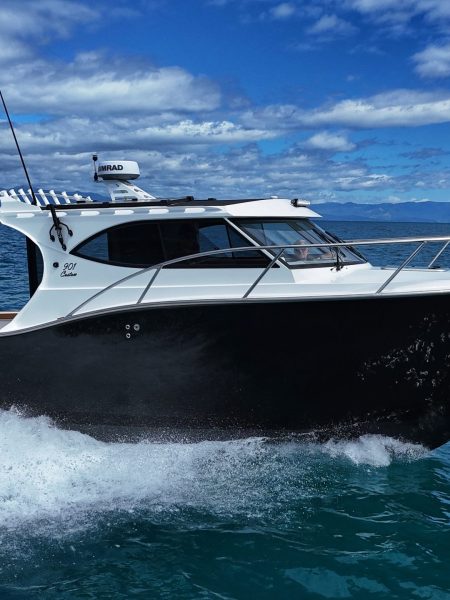

Curved Toughened Front Glass With Structural Center Pillar
Bifold Cabin Door
- 4 x Forward Berths
- Walk around engine box
- Live bait Tank
- Transom Gate/Ladder
- Bait Station
- Deck Wash
- Electric Reel Sockets
- Cockpit Seating with Storage under neath
- U-Dek Flooring
- Faired and Painted (Epoxy)
- Bow Rails
- Welded in Rod Holders
- Drink/Sinker Holders
- Opening Front Hatch
- Full Height Head with Shower
- Corner Lounger Seating With Table
- Diesel Cabin Heater
- Thru Hull Transducer 3KW
- Simrad Auto Pilot
- Simrad Radar
- 16'' Simrad MFD
- Simrad VHF
- Simrad S5100 Sounder Module
- Mercury Diesel V8 370HP
- Stereo with Inddor and Outdoor Speakers
- Comprehensive lighting package
- Knee Operated Handwash x 2
- USB Ports
- Wallas Diesel Cooktop
- Sink with Mixer
- 100L Fresh Water Tank C/W Accumulator
- 50L How Water Cylinder (Heated via Main Engine)
- Solar Panels
- Drawers
- 85L Fridge
- DNA Swivel Bolster Skipper Seat
- Bow Thruster
- Maxwell RC8 Anchor Winch - 10KG Anchor 100m Rope and Chain Package
- House And start Batterie's
- Windscreen Wipers With Washer
- Nav and Anchor Lights
- Lined Cabin
- Fold Up Stainless Steel Cleats x 4
- Welded Bow Cleat
- Mooring Capable Fairlead
- Underwater Lights
- Zipwake Trim Tabs
- Roof Mounted Rod Holders
- Bilge Pumps x 3 With Float Switches with 24HR Option
- Sliding Side Windows
- Curved Toughened Front Glass With Structural Center Pillar
- Bifold Cabin Door
Note: Specifications and equipment may change at any time without notice. Photographs shown may include non-standard extras. Please consult your DNA Boats Dealer for specific model information.
